Introduction
Pipeline and processing facilities consistently target higher throughput, lower OPEX, and more predictable operating conditions. One of the least-visible yet highest-impact contributors to inefficiency is pressure drop across filtration systems—a factor that directly drives pump and compressor energy demand, increases maintenance frequency, and reduces hydraulic stability.
Full-flow magnetic separation, particularly the systems deployed by Black Powder Solutions (BPS), offers a no-media, near-zero-restriction solution that eliminates the fundamental cause of pressure drop escalation: contaminant loading.
Traditional filters load exponentially as particulate accumulates, resulting in:
- Higher pump and compressor energy draw
- More frequent differential-pressure alarms
- Shorter filter life and increased consumable spend
- Reduced process stability and flow efficiency
In hydrocarbon environments where continuous operations and predictable pressure profiles are critical, ΔP behavior directly affects equipment life, throughput, and operating cost.
How It Works

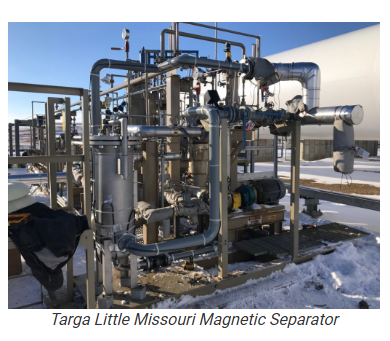

BPS Magnetic Separator Systems use engineered magnetic arrays housed within a pressure-rated vessel to extract ferrous and paramagnetic particulate—including Black Powder™—without obstructing flow.
Because these systems contain no disposable media, they maintain:
- ~0 psi ΔP in clean conditions
- No pressure escalation as contaminants accumulate
- Consistent flow and predictable hydraulic loading
This performance advantage is particularly critical given that Black Powder contamination consists of sub-micron ferrous and non-ferrous particles that pass through traditional filters.
Energy Savings in Hydrocarbon Systems
By preventing differential-pressure rise, full-flow magnetic separation provides measurable energy and environmental benefits across pump and compressor systems:
- Reduced pumping horsepower
- Reduced compressor energy demand
- Improved hydraulic efficiency in liquid and gas systems
Additionally, magnetic separation minimizes the operational burden caused by abrasive particles that accelerate wear on bearings, seals, valves, and metering equipment.
Field data from BPS installations shows:
- 1–4% reduction in pumping energy costs
- Lower compressor horsepower requirements
- Reduced OPEX related to filter replacement, disposal, and downtime
Some midstream operators have reported over 70% reductions in annual filtration spend, due to the elimination of disposable media and reduced maintenance events.
Operational Visibility & Contamination Quantification
BPS systems integrate:
- ΔP monitoring
- Contamination retrieval cycles
- Visual inspection of captured ferrous particulate
This allows operators to verify system cleanliness, correlate contamination trends, and quantify both hydraulic and mechanical impacts.
BPS also recommends advanced laboratory analysis—PSD, XRD/EDS—to evaluate particle composition and better understand root causes of corrosion, wear, and scale formation.
Industry Context: Why Magnetic Separation Outperforms Filtration
Black Powder contamination forms continuously within hydrocarbon systems as a mixture of ferrous oxides, iron sulfides, and other fine particulates. These particles typically range from visible flakes down to sub-micron fines that remain fully entrained in flow and evade traditional filtration.
Because even sub-10-micron particulate causes measurable erosion, seal wear, and meter inaccuracies, the ability to continuously remove fines without restricting flow fundamentally changes lifecycle performance of rotating and process equipment.
Case Evidence Across Industry Segments
Examples from BPS deployments include:
- Refinery desalter application achieving $1.85M annual savings through reduced filter changeouts and water disposal.
- Midstream compressor systems reporting improved lubricant cleanliness and reduced maintenance events.
- Amine treating units showing improved reliability by removing sub-micron Black Powder contamination.
These cases demonstrate that magnetic separation impacts both hydraulic stability (ΔP behavior) and mechanical asset longevity.
Conclusion
Full-flow magnetic separation fundamentally eliminates the pressure-drop instability inherent to media-based filters. By combining zero-loading ΔP behavior with high-efficiency contaminant removal—even below 1 micron—these systems deliver:
- Lower energy consumption
- Higher throughput and more stable operations
- Lower OPEX through reduced maintenance and consumable use
- Quantifiable improvements in equipment reliability
For operators seeking predictable, long-term performance in hydrocarbon systems, magnetic separation provides a proven, field-validated technology platform.
